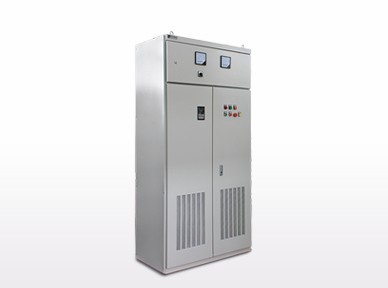

PS9530 serices frequency inverter integrated cabinet is based on the technology of PI9000 serices high-performance vector inverter.It is modularly designed and intedrated the corresponding peripheral including external control circuit and display units.The users can choose to the frequency inverter integrated cabinet with our standard configuration function,also can chose the customized product which we can integrate the peripheral control devices and the control panel according to kinds of application cases. After purchase the frequency inveter integrated cabinet. it can be used normally after properly connected with the power supply and motor,This can avoid the inconvenience for secondary wiring,PS9530 serices frequency inverter integrated cabinet,featured with conise and beautiful appearance, easy to use. It improved the safety and reliability of the secondary distribution,and also reduce your cost.
|
Item |
Function |
Specification |
||
|
Power |
Voltage and frequency levels |
AC Three-pahse 480V{-10%}~480V{+10%} AC Three-pahse 380V{-15%}~440V{+10%} AC Single-pahse 220V{-15%}~240V{+10%} AC Three-pahse 220V{-15%}~240V{+10%} |
||
|
input frequency |
50Hz/60Hz |
|||
|
Allowable fluctuation |
Voltage fluctuations：±10%； Input frequency fluctuation：±5% The voltage imbalance ratio less than3%； Distortion rate meets IEC61800-2 standard； |
|||
|
Control system |
Control system |
High performance vector control inverter based on DSP |
||
|
Control method |
V/F control，vector control W/O PG,vector control PG |
|||
|
Automatic torque boost function |
Realiza low frequency（1Hz）and large output torque controlunder the V/F control mode. |
|||
|
Acceleration/deceleration control |
Straight or S-curve mode.Four Times available and times range is 0.0 to 6500.0s |
|||
|
V/F curve mode |
Linear,square root/m-th power.custom V/F curve |
|||
|
Over load capability |
G type：rated current 150%-1minute，rated current 180%-2 seconds |
|||
|
F type：rated current120%~1minute，rated current150%~2 seconds |
||||
|
Maximum frequency |
Vector control：0~300Hz V/F control：0~3200Hz |
|||
|
Carrier Frequency |
0.5K~16kHz;automatically adjust carrier frequency according to the load characteristics， |
|||
|
Input frequency resolution |
Digital setting：0.01Hz Analog setting：Maximum frequency*0.1% |
|||
|
Start torque |
G type：0.5Hz/150%(vector control W/O PG) F type：0.5Hz/100%(vector control W/PG） |
|||
|
Speed range |
1：100（vector control W/O PG） 1：1000（vector control W/PG） |
|||
|
Steady-speed precision |
Vector control W/O PG：≤±0.5%（rated synchronous speed） vector control W/PG：≤±0.02%（rated synchronous speed） |
|||
|
Torque response |
≤40ms（Vector control W/O PG） |
|||
|
Torque boost |
Automatic torque boost；manual torque boost 0.1%~30.0% |
|||
|
DC braking |
DC breaking frequency：0.00Hz to max frequency， breaking time：0.0~100.0seconds，breakingcurrent value：0.0%~100.0% |
|||
|
Jogging control |
Jog frequency range：0.00Hz to max frequency；Jog ac/deceleration time 0.0s~6500.0s |
|||
|
Multi-speed operation |
Achieve up to 16-speed operation through the control terminal |
|||
|
Built-in PID |
Easy to realize closed-loop control system for the process control |
|||
|
Automatic voltage regulation（AVR） |
Automatically maintain a constant output voltage when the voltage of electricity grid changes |
|||
|
Torque limit and control |
“Excavator”feature-torque is automatically limited during the operation to prevent overcurrent trip:closed-loop vector mode is used to control torque. |
|||
|
Persona-lization function |
Self-inspection of peripherals after power-on |
After powering on, peripheral equipment safety testing, such as ground, short circuit,etc. |
||
|
Common DC bus function |
Multiple inverters can use a common DC bus. |
|||
|
Quick current limiting |
The current limiting algorithm is used to reduce the inverter overcurrent probability.and improve whole unit anti-interference capability. |
|||
|
Timing control |
Timing control function: time setting range(0m to 6500m) |
|||
|
Running |
Input signal |
Runing method |
Keyboard/terminal/communication |
|
|
Frequency setting |
10 frequency setting available、including adjustable DC0~10V/-10~+10V，adjustable DC0~20mA，panel potentiometer, etc. |
|||
|
Start signal |
Rotate forward/reverse |
|||
|
Multi-speed |
At most 16-speed can be set(run by using the multi-function terminals or program) |
|||
|
Emergency stop |
Interrupt controller output |
|||
|
Wobbulate run |
Process control run |
|||
|
Fault reset |
When the protection function is active,you can automatically or manually reset the fault condition |
|||
|
PID feedback signal |
Including DC(0~10V),DC(0~20mA) |
|||
|
Output signal |
Running status |
Motor status display, stop, ac/deceleration, constant speed, program rinning status. |
||
|
Fault output |
Contact capacity：normal-cloeed contact 3A/AC 250V；normal-opened contact 5A/AC 250V;1A/DC 30V |
|||
|
Analog ouput |
Two-way analog，16 signals can be selscted such as frequency,current,voltage and others,output signal range(0~10V/0~20mA) |
|||
|
Output signal |
At most 4-way output, there are 40 signals each way |
|||
|
Running function |
Limit frequency,jump frequency, frequency compensation,auto-tuning，PID control |
|||
|
DC current breaking |
Built-in PID regulates breaking current to ensure sufficient breaking toeque under no overcurrent condition |
|||
|
Running command channel |
Three channels: operation panel, control terminals and serial communication port. They can be switched through a variety of ways. |
|||
|
Frequency source |
Total 5 frequency sources:digital,analog current,multi-speed and serial port. They can be switched through a variety of ways |
|||
|
Input terminals |
8digital input terminals, compatible with active PNP input mode，one of them can be for high-speed pulse input（0~100kHz square ware）；AI1,AI2 can select (0~10Vor 0~20mA)input，AI3 for voltage (-10~+10V)input |
|||
|
Output terminals |
2 digital output terminals，one of them can be for high-speed pulse output（0~100kHz square ware）；one relay output terminal; 2 analog output terminals respectively fpr optional range(o to 20mA or 0 to 10V),they can be use to set frequency,output frequency,speed and other physical paremeters |
|||
|
Protection function |
Inverter protection |
Overvoltage protection,undervoltage protection, Overcurrent protection,overload protection,overheat protection,overcurrent stall protection, overvoltage stall protection,losting-phase protection（optional），external fault,communication error,PID feedback signal abnormalities,PG failure and short circuit to ground protection |
||
|
IGBT temperature display |
Displays current temperature IGBT |
|||
|
Inverter fan control |
Can be set |
|||
|
Instantaneous power-down restart |
Less than 15 milliseconds：continuous operation,more than 15milliseconds：automatic detection of motor speed，instantaneous power-down restart |
|||
|
Speed start tracking method |
The inverter automatically tracks motor speed after it starts |
|||
|
Parameter protection function |
Protect inverter parameters by setting administartor Password and decoding |
|||
|
Display |
LED/OLED display keyboard |
Running information |
Monitoring objects including：running frequency，set frequency，actual motor current，DC bus voltage，output voltage，actual motor speed，output power，output torque，input terminal status，output terminal status，analog AI1 value，analog AI2 value，actual running speed of motor，PID reference value，PIDfeedback value。 |
|
|
Error message |
At most save 3 error message,and the time, type, voltage, current, frequency and work statues can be queried when the failure is occurred. |
|||
|
LED display |
Display parameters |
|||
|
OLED display |
Optional, prompts operation content in Chinese/English text |
|||
|
Parameters copy |
Can uploading or downloading the function code information of frequency inverters, do the parameter copy quickly. |
|||
|
Communication |
RS485 |
Bulid-in 485 |
||
|
Environment |
Environment temperature |
-10℃ to 40℃（temperature at 40℃~50℃，please derating for use） |
||
|
Storage temperature |
-20℃ to 65℃ |
|||
|
Environment humidity |
Does not exceed 90%R.H，no condensation of moisture |
|||
|
Vibration |
Below 5.9m/s2(=0.6g) |
|||
|
Application sites |
Indoor where no sunlight or corrosive, explosive gas and water vapor, dust, flammable gas, oil mist, water vapor, drip or salt, etc. |
|||
|
Altitude |
Below1000m |
|||
|
Pollution degree |
IP20 |
|||
|
Product standard |
Product adopts safety standards |
IEC61800-5-1:2007 |
||
|
Product adopts EMC standards |
IEC61800-3：2005 |
|||
|
Cooling metod |
Forced air cooling and natural air cooling |
|||
（1）Environment temperature(-10℃~50℃)，when rising above 40℃，each degree rise in temperature will reduce3% capacityaccording to the rated current, So it is not advisable to use inverter above 50℃
（2）Prevent electromagnetic interference, and away from interference sources
（3）Prevent the ingress of droplets, vapor, dust, dirt, lint and metal fine powder
（4）Prevent the ingress of oil, salt and corrosive gases
（5）Avoid vibration
（6）Avoid high temperature and humidity or exposure to rain, humidity shall be less than 90% RH(non-condensing)
（7）Altitude below 1000 meters
（8）Never use in the dangerous environment of flammable, combustible, explosive gas, liliquid or solid
PS9530 serices frequency inverter integrated cabinet is widely used in industrial reform fields of NDRC(National Development and Reform Commision)：
Electricity：Blower fan and water pump reform system,especially for 200thousand kW thermal generator set
Color：dust removal system automation control and fan speed
Coal industry：mine air blower and draining pump speed sdjusting reform and computer control system
Petrochemical industry：automatic control of system process pump
Motor：design and manufacture energy-saving motor, motor system and corollary equipment
Light industry：Energy-saving on injection molding machine and hydraulic oil pump
Moreover, PS9530 serices frequency inverter integrated cabinet is also widely used for Energy-saving in enterprises’ air conditioning and ventilation, central air conditioning, building materials(cement glass), architecture(water supply), sewage treatmant, etc.
1.GGD standard electrical cabinets and rittal cabinet, more modular structure of a variety of forms ；
2.The numerical control machine tool processing；
3.Separation of econimizer main circuit and control circuit, strong anti-jamming capability
4.Special ventilation design
